SED-16S Automatic Electronic Counting Machine

Name: SED-16S Automatic Electronic Counting Machine
Brand: Yoho Industrial
SKU: YO-376

SED-16 Application 1. Filled capsule(00-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range Hopper Volume 60L Capacity...

Pharmaceutical & Medical Machinery 2 photos Model 376 CE certified

SED-16 Application 1. Filled capsule(00-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range Hopper Volume 60L Capacity 20-80 bottles/min Filling arrange 1-9999 Bottle Size Diameter: 30-90mm Height:40-250mm Counting Size Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm Compressed air 0.6Mpa Machine Weight 350kg Machine Size L × W × H (mm) 1600×1400×1560mm SED-16 Automatic...

Request a quotation Email our sales team

Technical specifications

Application	1. Filled capsule(00-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range
Hopper Volume	60L
Capacity	20-80 bottles/min
Filling arrange	1-9999
Bottle Size	Diameter: 30-90mm Height:40-250mm
Counting Size	Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm
Compressed air	0.6Mpa
Machine Weight	350kg
Machine Size L × W × H	1600×1400×1560mm

Supply and service

Model	YO-376
Category	Pharmaceutical & Medical Machinery
Warranty	12 months from commissioning
Delivery	15 – 30 days after order confirmation
Installation	Engineer guidance, remote commissioning support
Payment	T/T, L/C at sight
Certification	CE, manufactured under ISO 9001:2015
Origin	Shanghai, China

About this machine

5. other solid object under machine range

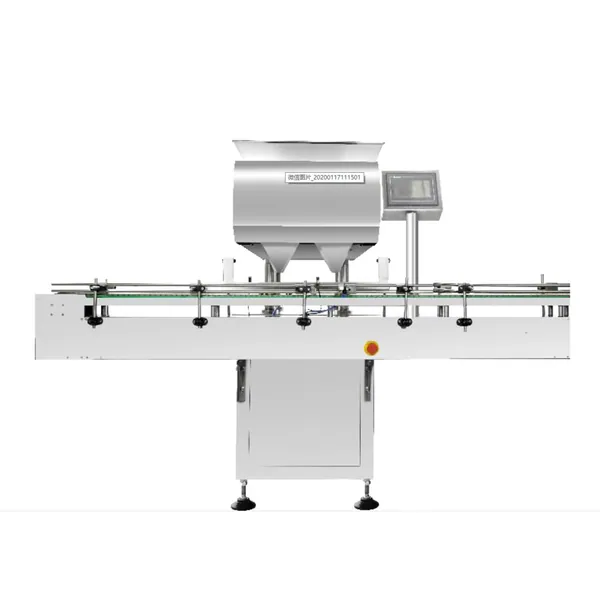

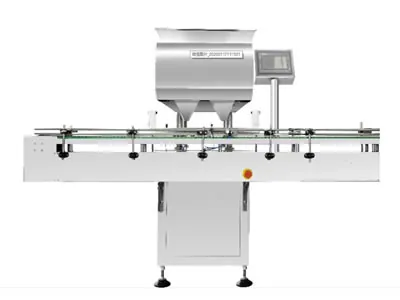

SED-16 Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 16 sets imported counting sensor for counting with 16 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

Applications

SED-16S Automatic Electronic Counting Machine is supplied by Yoho Industrial (Shanghai) Co., Ltd for use across beverage, food, cosmetic, pharmaceutical and general packaging production. The machine is configured and tested in our Shanghai factory before shipment, and is backed by our 12-month warranty and engineering support.

If you send us the product, container dimensions and required hourly output, we will confirm the most suitable configuration and provide a quotation.
