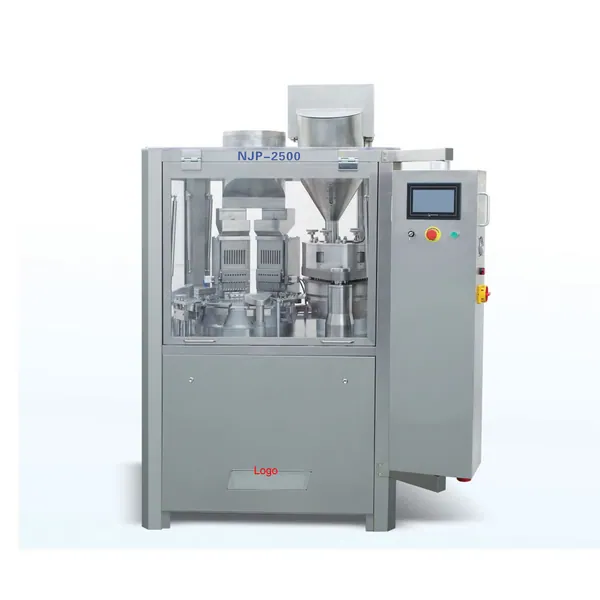

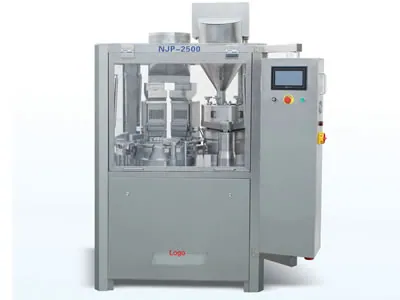

NJP-2500 Series Closed Full-Automatic Capsule Filling Machine Outfit

Name: NJP-2500 Series Closed Full-Automatic Capsule Filling Machine Outfit
Brand: Yoho Industrial
SKU: YO-377

Model and specification NJP-2500CFully automatic hard capsule filling machine technical parameters Weight 1500kg Dimension 1000 ×1050×1950mm Motor power 6.45kw ...

Pharmaceutical & Medical Machinery 4 photos Model 377 CE certified

Model and specification NJP-2500CFully automatic hard capsule filling machine technical parameters Weight 1500kg Dimension 1000 ×1050×1950mm Motor power 6.45kw Voltage Three-phase four-wire AC 380V;50Hz Capacity 150000 pcs/hour Refillable capsule model 00# ～5# & safety capsuleA～E Chances on Capsules ≥99.5％ Noise ≤75dBA Loading difference 300mg 以上 ≤± 3 ％ Air compress 0.06m 3 /min 0.3Mpa Water requirements The water ring vacuum...

Request a quotation Email our sales team

Technical specifications

Model and specification	NJP-2500CFully automatic hard capsule filling machine
Weight	1500kg
Dimension	1000 ×1050×1950mm
Motor power	6.45kw
Voltage	Three-phase four-wire AC 380V;50Hz
Capacity	150000 pcs/hour
Refillable capsule model	00# ～5# & safety capsuleA～E
Chances on Capsules	≥99.5％
Noise	≤75dBA
Loading difference	300mg 以上 ≤± 3 ％
Air compress	0.06m 3 /min 0.3Mpa
Water requirements	The water ring vacuum pump is used for circulating the water tank, and an external water source can also be used.
degree of vacuum	-0.02 ～-0.06 MPa
water flow	250L/h
Inlet diameter	20mm
Drain pipe inner diameter	27mm
Working temperature	21 ℃±3℃
Workplace height requirements	Manual feeding ≥ 2.6m ， Vacuum feeding ≥ 2.8m
Relative humidity of working environment	40 ～55％
Exhaust volume	300m 3 /h
Special function	The pellet filling device can be added; the powder collector function (part of the filled powder is recovered from another pipeline, no need for disinfection and sterilization, and can be directly added to the hopper for filling)
Control System	Frequency conversion stepless speed regulation, PLC control

Supply and service

Model	YO-377
Category	Pharmaceutical & Medical Machinery
Warranty	12 months from commissioning
Delivery	15 – 30 days after order confirmation
Installation	Engineer guidance, remote commissioning support
Payment	T/T, L/C at sight
Certification	CE, manufactured under ISO 9001:2015
Origin	Shanghai, China

About this machine

NJP-2500CFully automatic hard capsule filling machine

Three-phase four-wire AC 380V;50Hz

The water ring vacuum pump is used for circulating the water tank, and an external water source can also be used.

Manual feeding ≥ 2.6m ， Vacuum feeding ≥ 2.8m

Relative humidity of working environment

The pellet filling device can be added; the powder collector function (part of the filled powder is recovered from another pipeline, no need for disinfection and sterilization, and can be directly added to the hopper for filling)

Frequency conversion stepless speed regulation, PLC control

Applications

NJP-2500 Series Closed Full-Automatic Capsule Filling Machine Outfit is supplied by Yoho Industrial (Shanghai) Co., Ltd for use across beverage, food, cosmetic, pharmaceutical and general packaging production. The machine is configured and tested in our Shanghai factory before shipment, and is backed by our 12-month warranty and engineering support.

If you send us the product, container dimensions and required hourly output, we will confirm the most suitable configuration and provide a quotation.
