450L Automatic Edge Sealing Machine & BS4020 Hot Air Circulation Shrinking Machine
Sealing & cutting machine Technical parameters: Model 450L Voltage 220V 50Hz Power 1.35kw Packing speed 15-30 bag/Min Maximum...
Machine model QDFM-125 Material stainless steel 201 Driven type electric and pneumatic Voltage AC 220V 50Hz / 110V 60Hz Apparent Power 1800W Working frequency 20KHz ...
| Machine model | QDFM-125 |
|---|---|
| Material | stainless steel 201 |
| Driven type | electric and pneumatic |
| Voltage | AC 220V 50Hz / 110V 60Hz |
| Apparent Power | 1800W |
| Working frequency | 20KHz |
| Air pressure | 0.4-0.6Mpa |
| Function | soft plastic tube sealing,printing,cutting 铝塑 |
| Sealing diameter | 5-60mm(can be customized) |
| Working height | 0-300mm(can be customized) |
| Sealing speed | about 20 pcs/Min |
| Delay time | 0.1-9.9s |
| Weld time | 0.1-9.9s |
| Trimming time | 0.1-9.9s |
| Effective stroke of weld head | 50mm |
| Printing type | embossing |
| Table size | 300x325mm |
| Product size | 1100*650*530mm |
| Gross weight | 98kg |
| Model | YO-216 |
|---|---|
| Category | Semi-automatic Filling & Packing Machines |
| Warranty | 12 months from commissioning |
| Delivery | 15 – 30 days after order confirmation |
| Installation | Engineer guidance, remote commissioning support |
| Payment | T/T, L/C at sight |
| Certification | CE, manufactured under ISO 9001:2015 |
| Origin | Shanghai, China |
Driven type electric and pneumatic
Voltage AC 220V 50Hz / 110V 60Hz
Function soft plastic tube sealing,printing,cutting 铝塑
Sealing diameter 5-60mm(can be customized)
Working height 0-300mm(can be customized)
Effective stroke of weld head 50mm

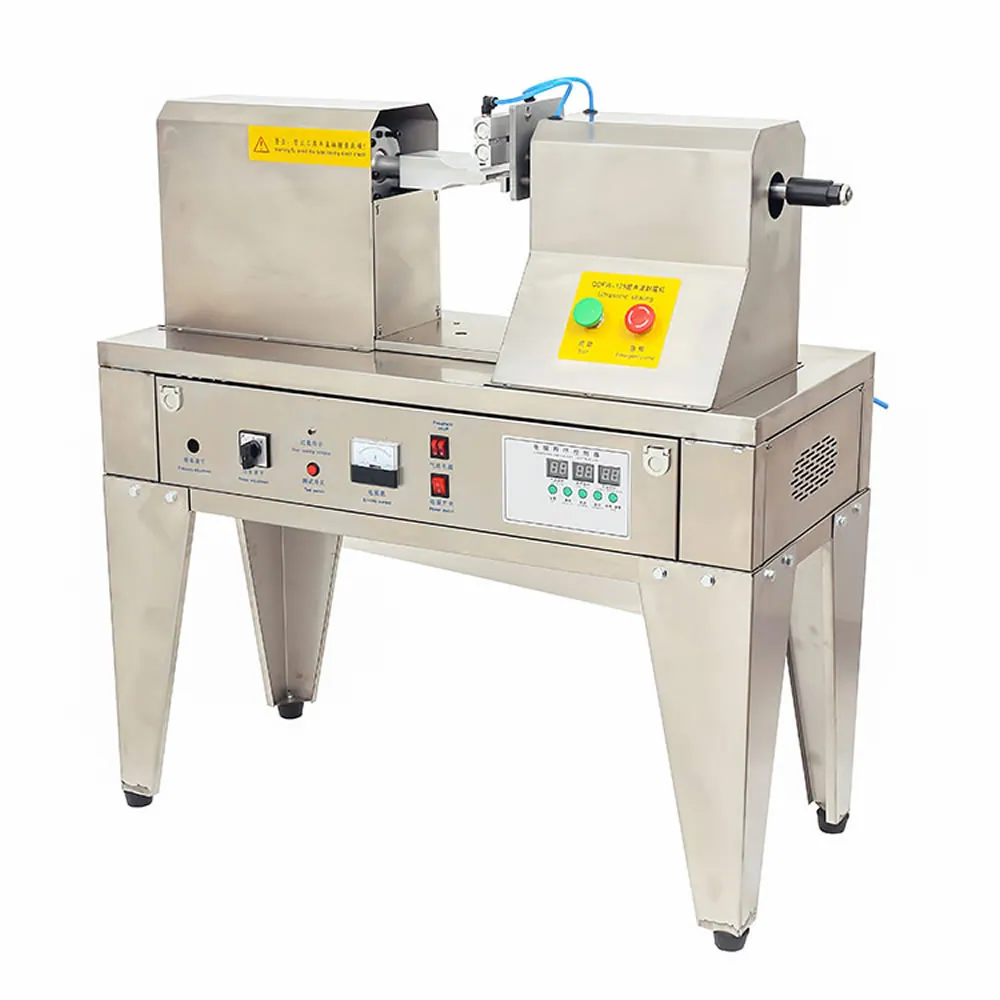

QDMF125 Plastic tube sealing machine/ultrasonic plastic tube sealer is supplied by Yoho Industrial (Shanghai) Co., Ltd for use across beverage, food, cosmetic, pharmaceutical and general packaging production. The machine is configured and tested in our Shanghai factory before shipment, and is backed by our 12-month warranty and engineering support.
If you send us the product, container dimensions and required hourly output, we will confirm the most suitable configuration and provide a quotation.
