Bottle cap making machine plastic cap making machine

Stable. Integrated swing design, high precision double pumps hydraulic system,PID operation control low pressure clamping and high pressure forming,the processrunning stable.

High efficiency.New type high speed feeding system,multi-mould continuously highspeed spinning,vacuum absorption cap making,high production efficiency.

Energy saving.Polymer low temperature molten,low-energy heating and cooling process.

Material saving.Intelligent temperature control extruding,pellet quantified cutting,stablegram weight,raw material is fully utilized.

Safety. Intelligent logic control system,automatic monitoring and alarm,automadiagnosis and protection.

Clean.Cap supply-blow-tIIl-cap bloCK System,on-lIne cap making and supplying,clean and sanitary.

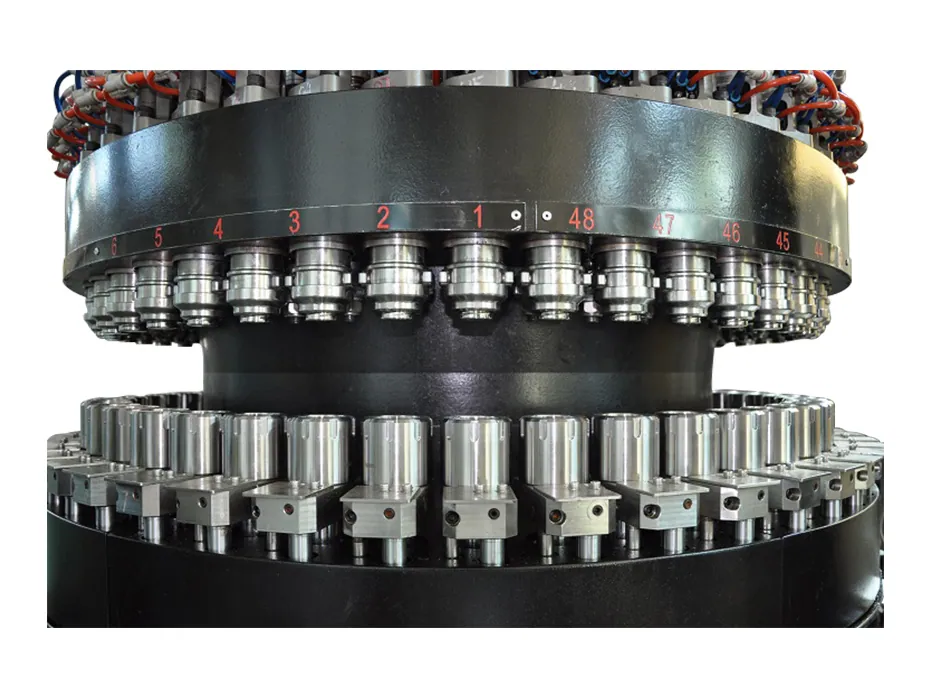

The automatic compression molding and capping machine adopts the upper and lower multi-mode high-speed rotary compression molding process to manufacture plastic bottle caps such as water beverage cover, medical cover, daily lid and wine cover. The granular plastic raw materials (such as PE, PP, etc.) are melted at a high temperature and then quantitatively extruded from the nozzle through an extruder, and then cut and evenly distributed into the respective cavity by the cutting tray, and finally pressed and formed in the cavity.

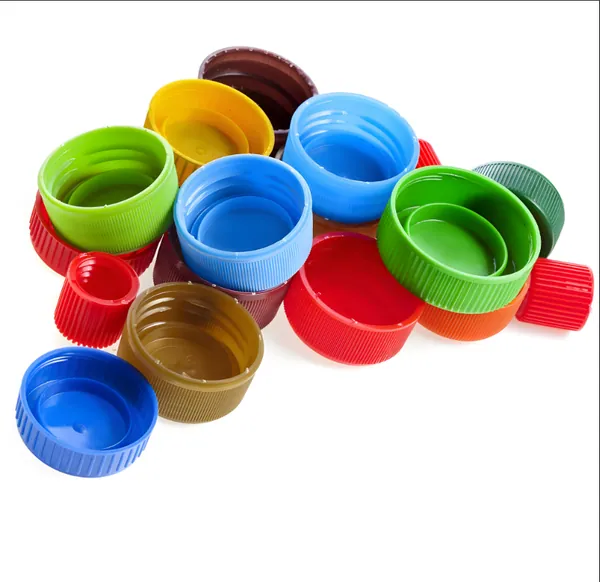

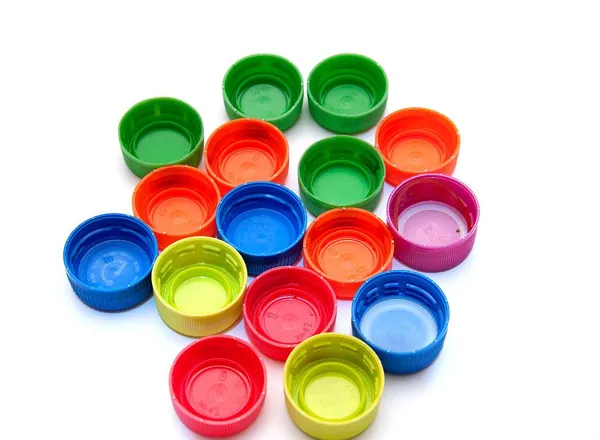

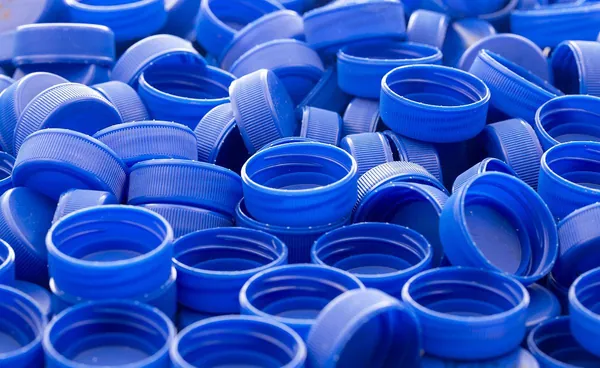

The product compression molding capping machine breaks through the key technology of the plastic machinery industry in the plastic molding method, and solves the problems of high energy consumption, high material consumption and low production efficiency of the traditional plastic machinery, and meets the needs of customers at home and abroad. Applicable to the production of mineral water bottle caps, dairy bottle caps, carbonated beverage bottle caps, high temperature juice caps, cosmetic caps, medical supplies caps, edible oil caps and other plastic caps.

Bottle cap making machine plastic cap making machine is supplied by Yoho Industrial (Shanghai) Co., Ltd for use across beverage, food, cosmetic, pharmaceutical and general packaging production. The machine is configured and tested in our Shanghai factory before shipment, and is backed by our 12-month warranty and engineering support.

If you send us the product, container dimensions and required hourly output, we will confirm the most suitable configuration and provide a quotation.
